Akicare ECG301 / ECG601 Electrocardiograph Machine

The Akicare ECG301 is a 3-channel electrocardiograph machine for clinical settings. It is typically sourced by hospital wards, outpatient clinics, and procurement teams responsible for diagnostic equipment. The unit covers routine 12-lead ECG acquisition and display for adult patients in secondary or primary care environments. This catalogue record describes the standard configuration and technical parameters as provided by the supplier.

The device acquires standard 12 leads simultaneously and displays them on a 7-inch high resolution colour touch screen. Measured parameters include amplitude within a ±5mVpp range, with input impedance of ≥50MΩ and common mode rejection ratio above 100dB. The unit offers automatic measurement and interpretation functions. Power is supplied via a built-in rechargeable Li-ion battery. Digital filters address baseline drift, AC interference, and EMG noise, with selectable frequency settings.

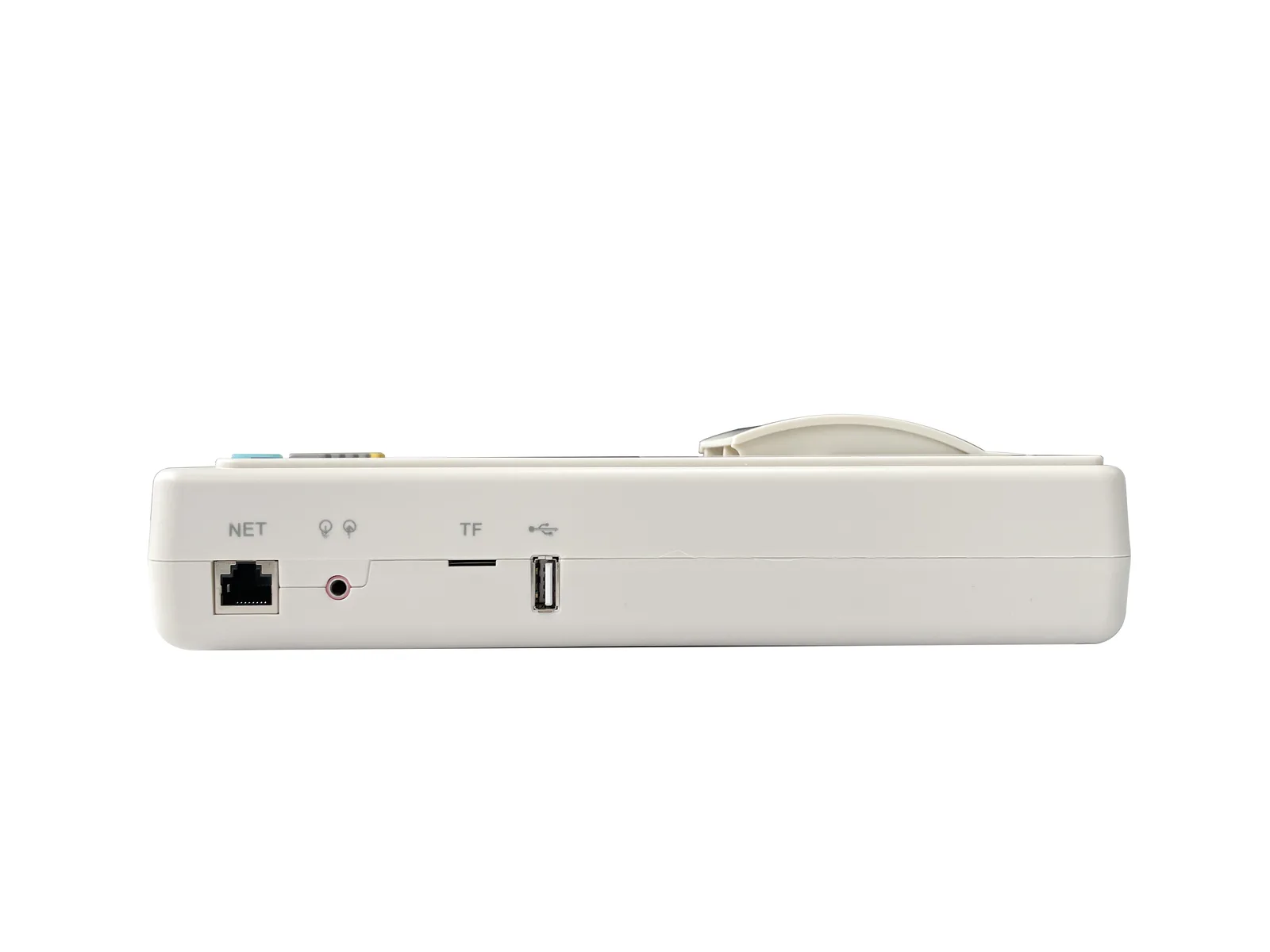

The ECG301 supports multiple record modes, including automatic formats such as 3CH×4+1R and manual 3CH or 2CH plus rhythm options. Data storage is extendable via USB flash disk or micro SD card, and software upgrades are performed through these ports. For broader channel requirements, sibling models include ECG1210, ECG302 / ECG602, and ECG1201. Commercial terms, including pricing and availability, are confirmed on an enquiry basis.

More Diagnostic ECG models are listed in the Medical Equipment catalogue for comparison; send an enquiry for configuration and terms.

Frequently asked questions

What lead configurations does the ECG301 support?

The unit supports standard 12 leads with simultaneous acquisition. Record modes include automatic formats such as 3CH×4+1R, 3CH×4, 3CH×2+2CH×3, and 6CH×2, plus manual modes like 3CH, 2CH, and rhythm with any lead selectable. This provides flexibility for different clinical workflows.

How is the device powered and what is the battery specification?

The ECG301 is powered by a built-in rechargeable Li-ion battery. No specific battery life or capacity figures are listed in the supplier specifications. The unit also offers USB flash disk and micro SD card support for data storage and software upgrades, which may affect portability in field use.

What filters are available for signal processing?

The device includes complete digital filters. EMG filter options are 25 Hz, 30 Hz, 40 Hz, 75 Hz, 100 Hz, and 150 Hz. A DFT filter is available at 0.05 Hz or 0.15 Hz, and an AC filter at 50 Hz or 60 Hz. These address baseline drift, AC interference, and muscle artifact.

How do I place an order or get pricing for the ECG301?

Pricing, availability, and delivery terms are agreed on an enquiry basis. Contact the supplier through the website with your quantity and delivery location to receive a confirmed quotation. No standard lead times or list prices are published in the catalogue record.
