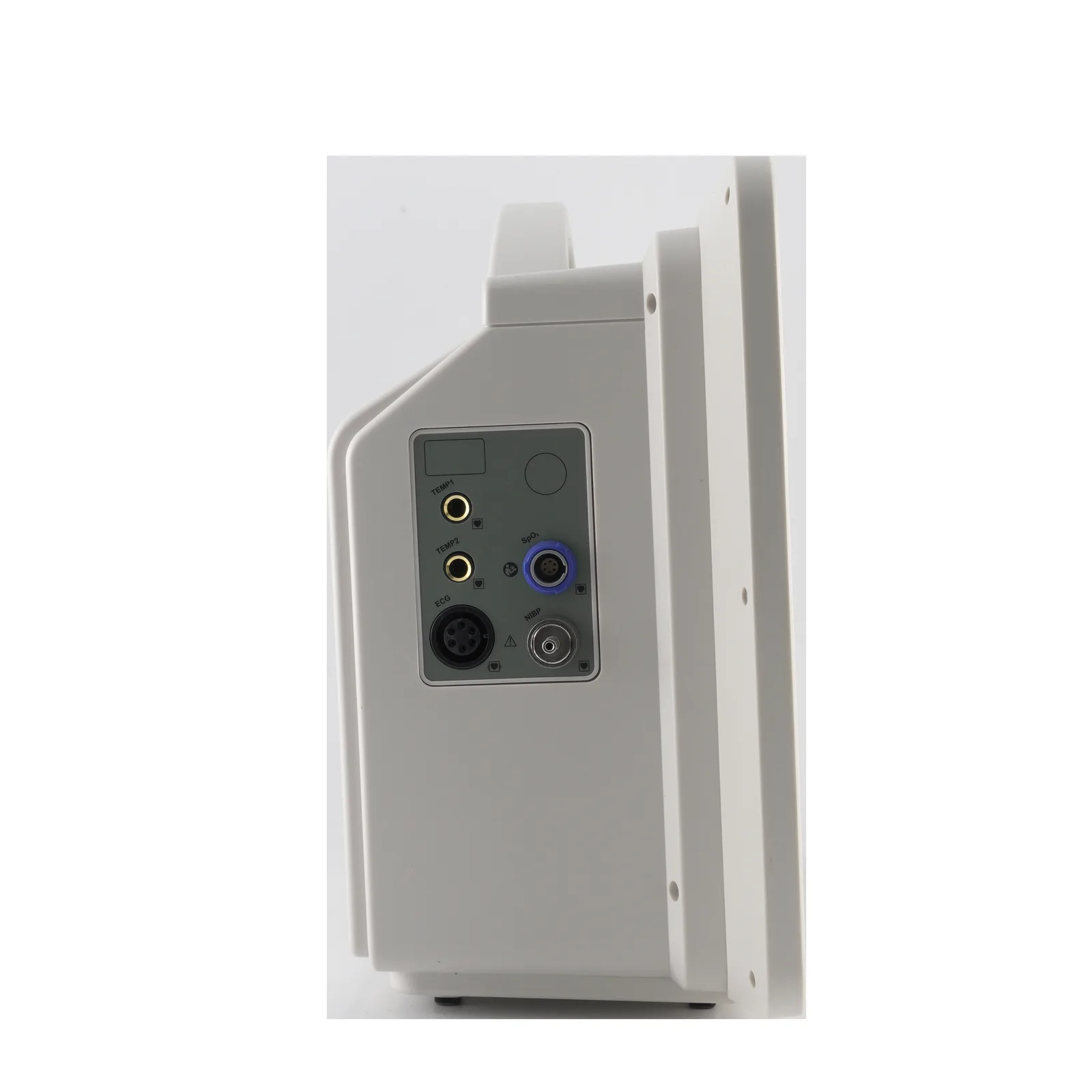

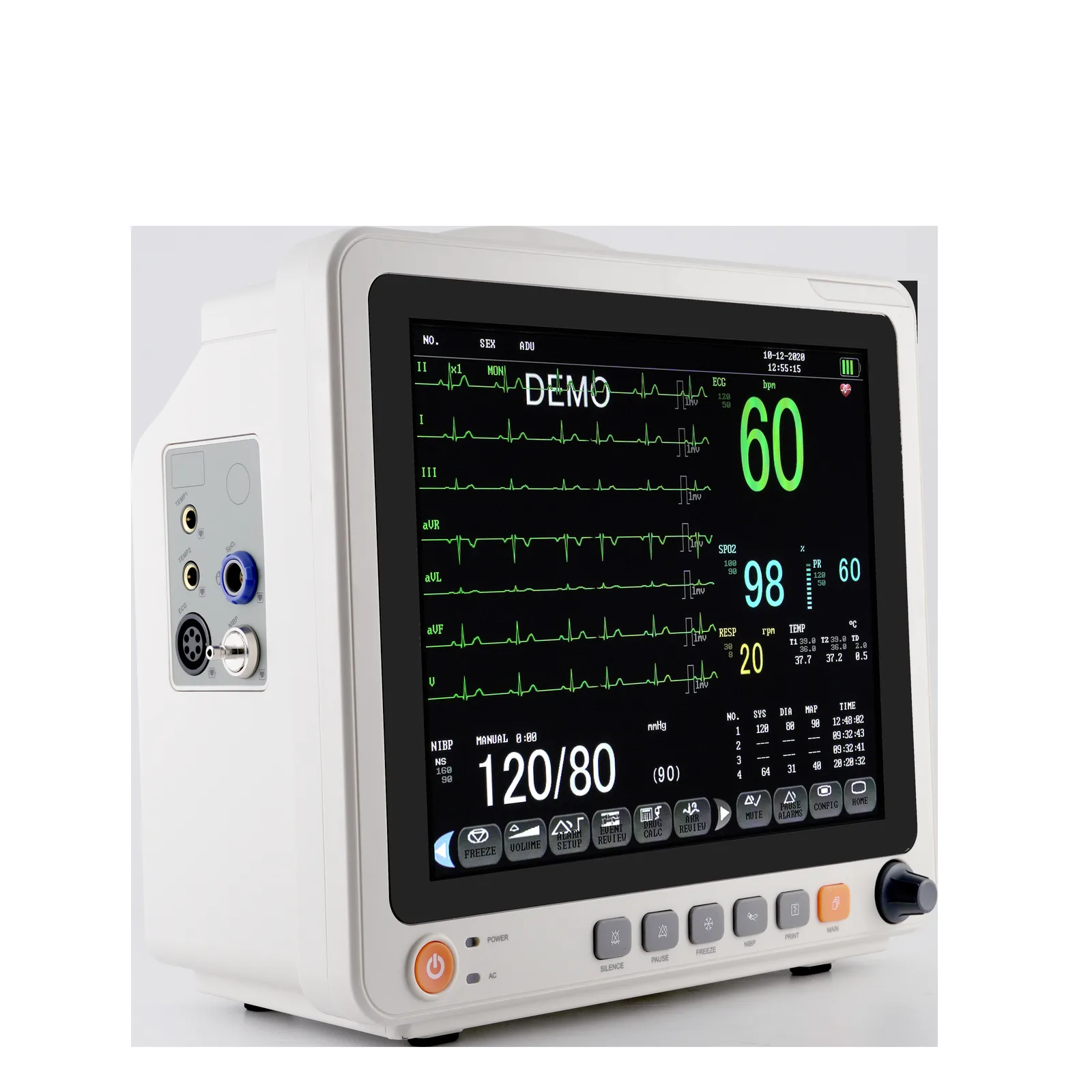

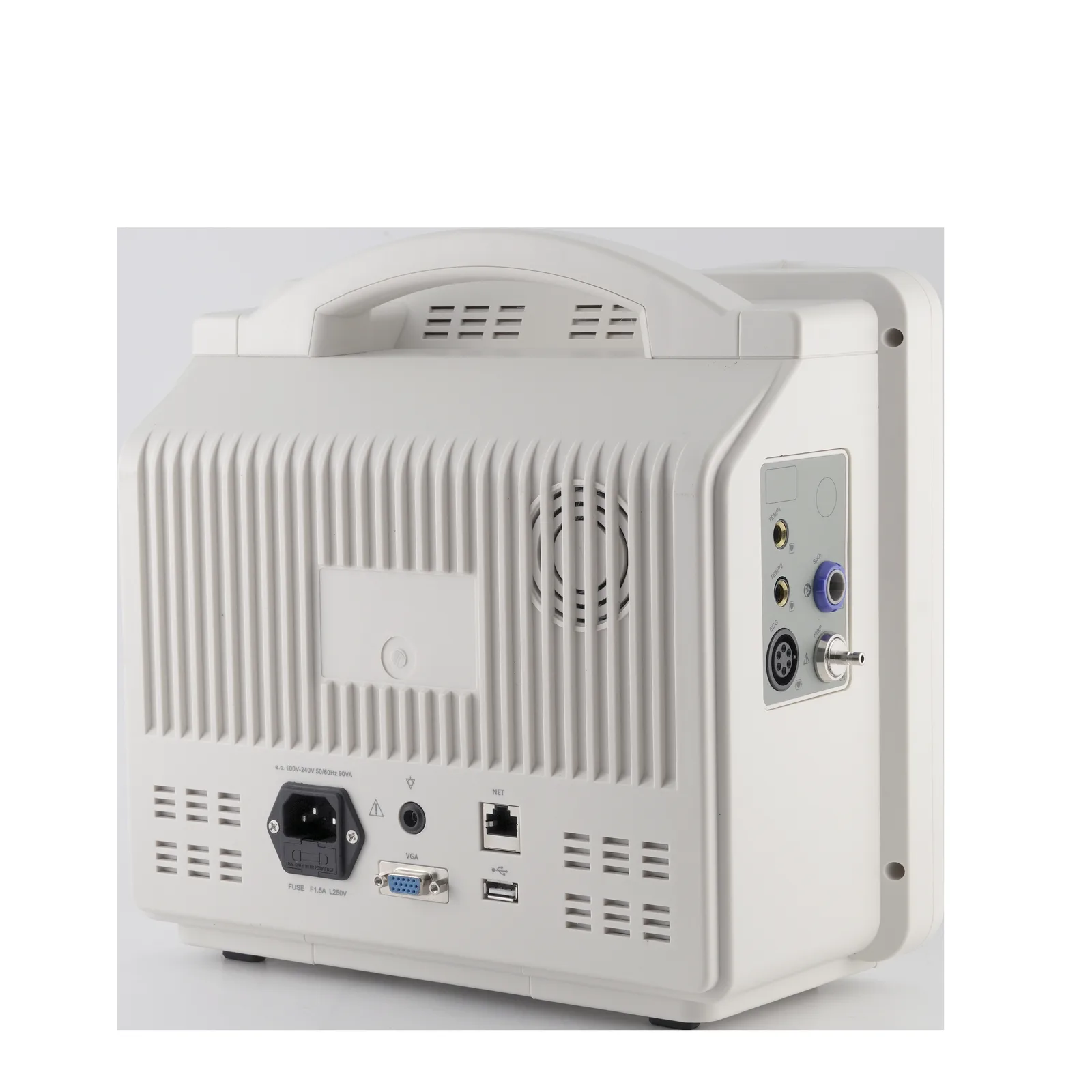

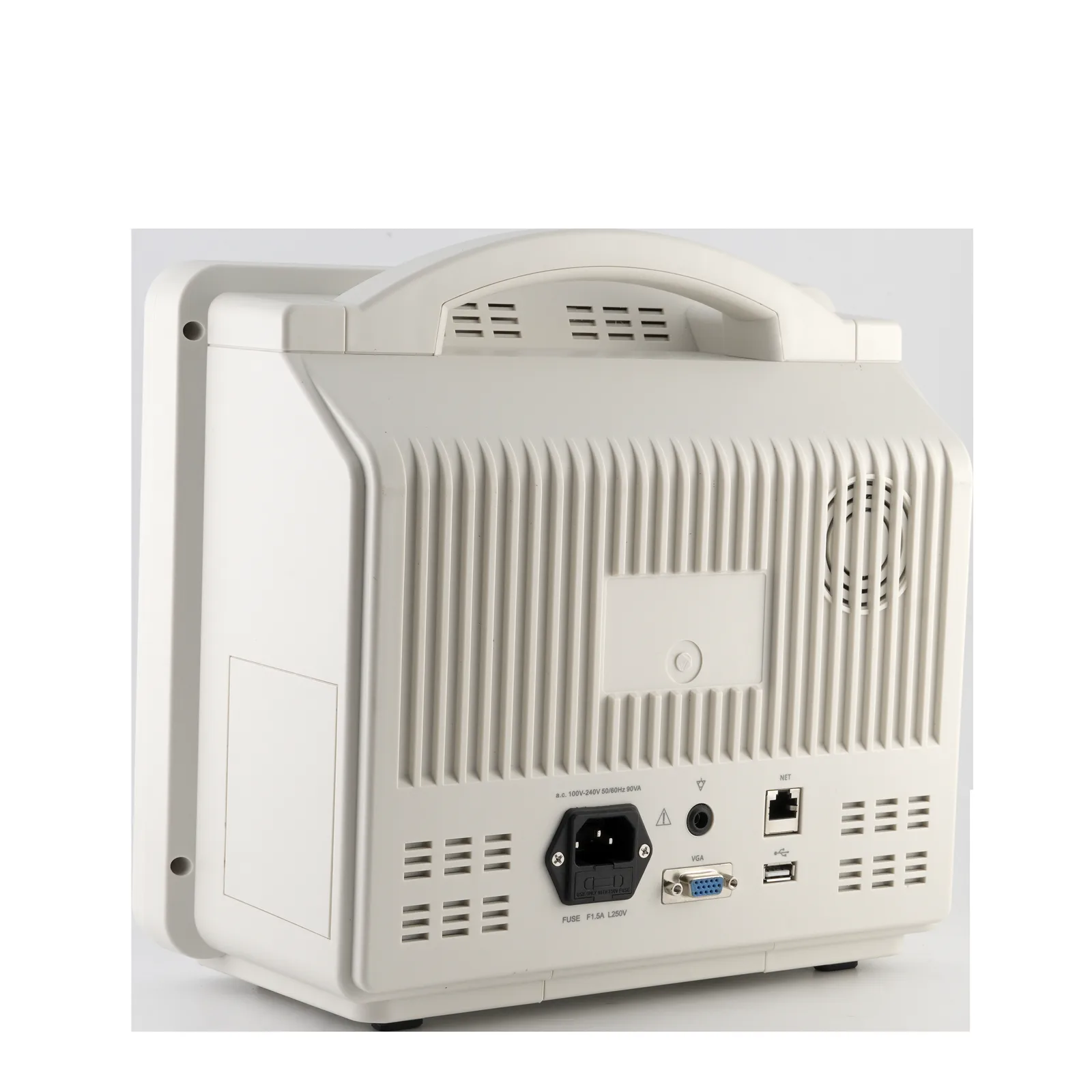

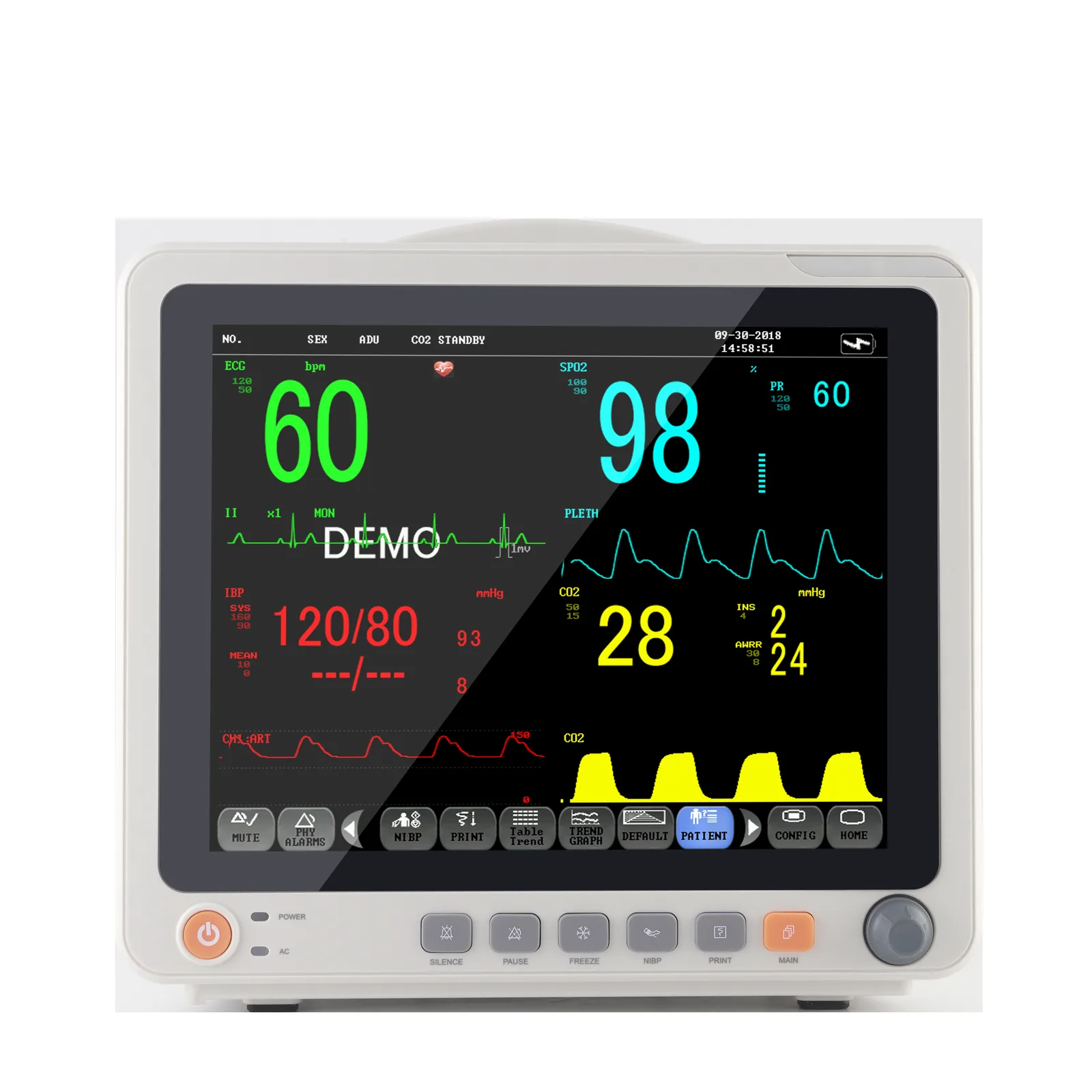

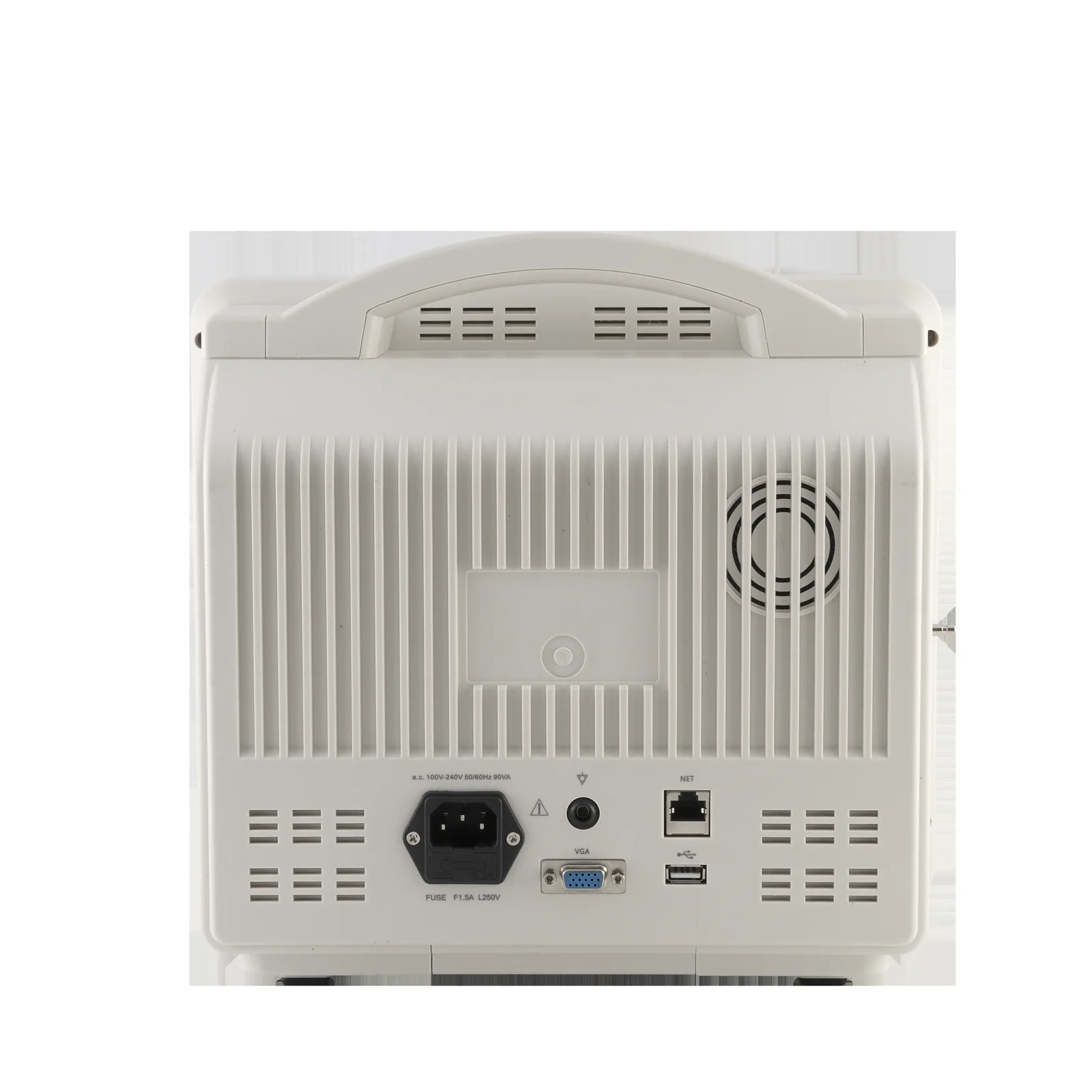

Akicare PM12B Multi-Parameter Patient Monitor
A 12.1-inch touch-screen multi-parameter patient monitor measuring ECG, SpO2, and NIBP, with battery backup, VGA output, and CMS compatibility.
- Exact system and model compatibility is confirmed in the written quote
- Condition and current availability stated in the quote
- Test scope, timing and shipping confirmed per request
Catalogue content is a product reference, not a universal compatibility, inventory or delivery guarantee.
Product details
The Akicare PM12B is a multi-parameter patient monitor intended for use in hospital wards, clinics, and similar healthcare settings. Procurement teams typically source this unit for bedside monitoring applications where ECG, SpO2, and NIBP measurements are required. It is supplied as a complete monitor, ready for integration into existing patient monitoring workflows.
The PM12B measures electrocardiography (ECG) with a 5-lead configuration, pulse oximetry (SpO2), and non-invasive blood pressure (NIBP) using the oscillometric method. It features a 12.1-inch high-resolution colour TFT display with touch-screen operation, three working modes (Monitoring, Surgery, and Diagnosis), and multiple display formats including standard, large font, and trend tables. The unit includes a built-in battery for up to 3 hours of continuous operation and provides VGA output for external display. It is also compatible with a Central Monitoring System (CMS).
Standard configuration includes the monitor with essential accessories. Optional accessories or sibling models (e.g., cPM, XP10, ePM) are not detailed in this catalogue record; availability and pricing are confirmed per enquiry. For full configuration options and commercial terms, please submit a formal request.
More Patient Monitors models are listed in the Medical Equipment catalogue for comparison; send an enquiry for configuration and terms.
| Display | 12.1 inch high resolution color TFT display |
|---|---|
| Touch screen | Touch-screen for easy operation |
| Working modes | Monitoring, Surgery and Diagnosis |
| ECG lead mode | 5 Leads (I, II, III, AVR, AVL, AVF, V) |
| ECG heart rate | 15-300 BPM (Adult); 15-350 BPM (Neonatal) |
| SpO2 measuring range | 0 ~ 100 % |
| SpO2 accuracy | 70% ~ 100% (±2 %) |
| NIBP method | Oscillometry |
| NIBP adult SYS range | 40 ~ 280 mmHg |
| NIBP adult DIA range | 10 ~ 225 mmHg |
| Battery | up to 3 hours of continuous work |
| External output | VGA output for external display |
Frequently asked questions
What parameters does the PM12B measure?
The PM12B measures ECG (with 5-lead configuration, heart rate range 15-300 BPM adult, 15-350 BPM neonatal), SpO2 (0-100% with accuracy ±2% in 70-100% range), and NIBP via oscillometry (adult SYS 40-280 mmHg, DIA 10-225 mmHg). It does not measure other parameters such as temperature or respiration unless specified.
Does the PM12B have a battery for portable use?
Yes, the PM12B includes a built-in high-capacity battery that supports up to 3 hours of continuous operation. This is per the technical specification. For extended use, the monitor can be connected to mains power via an external adapter, though specific power supply details are not provided in this record.
Can the PM12B be integrated with a central monitoring system?
The PM12B is compatible with a Central Monitoring System (CMS) as stated in the features. It also provides VGA output for external display. For specific CMS integration protocols or software requirements, please contact the supplier with your system details to confirm compatibility.
How do I order the PM12B and what are the available options?
Orders are handled on an enquiry basis. Please submit a request specifying the quantity, required accessories, and any additional options (e.g., cable lengths, mounts, or sibling models like cPM, XP10, ePM). Commercial terms, pricing, and delivery schedules are confirmed per order and depend on your configuration and location.
