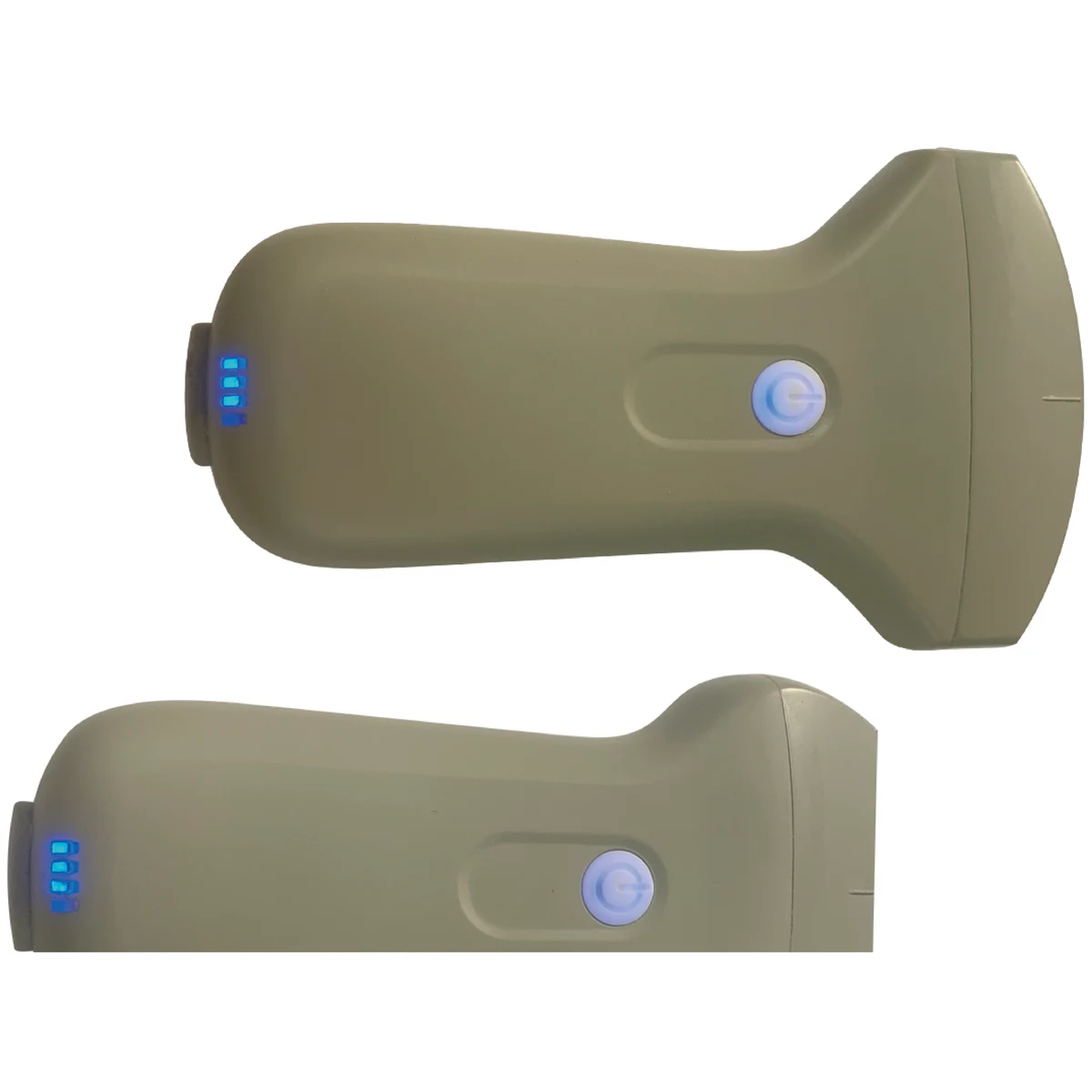

Akicare CP-3C3L Palm Wireless Ultrasound Scanner

The Akicare CP-3C3L is a palm wireless ultrasound scanner supplied through ultrasoundprobe.com. It is a compact electronic array unit available in convex and linear configurations. The scanner connects via WiFi or USB to an intelligent terminal platform, which supports application, storage, communication, and printing functions. Its small size and light weight are designed for portability and ease of operation in procurement contexts.

The unit displays B, B/M, B+Color, B+PDI, and B+PW modes. Probe frequencies are Convex 3.2MHz/4MHz and Linear 7.5MHz/10MHz. Scan depth settings are Convex 90/160/200/240mm and Linear 20/40/60/80mm. Convex scan angle is 60 degrees, with a head radius of 60mm. Linear scan width is 25mm. The device has 80 elements and 16 RF channels. Adjustments include BGain, TGC, DYN, Focus, Depth, Harmonic, Denoise, Color Gain, Steer, and PRF. Cineplay supports 100/200/500/1000 frames. Image frame rate is 18 frames per second. Measurements cover length, area, angle, heart rate, and obstetrics. Image save formats are jpg, jpeg, mp4, and DCM. Weight is 120g; dimensions are 11cm*6cm*2cm.

Standard configuration comprises one probe-type scanner unit and one USB connect and charging cable. Optional items include a carrying bag or aluminium suitcase, stainless steel puncture guide, Android or iOS phone/tablet, Windows PC, tablet bracket, and trolley. The unit runs on Apple iOS, Android, and Windows systems. Puncture assist includes in-plane and out-of-plane guide lines and automatic blood vessel measurement. Commercial terms, including pricing and delivery, are confirmed per enquiry.

Related wireless ultrasound records in the same catalogue section include the Three-in-one wireless probe and the Two-in-one CProbe; send an enquiry to compare configurations.

Frequently asked questions

What connectivity options does the CP-3C3L offer?

The scanner provides two connection methods: WiFi and USB. This allows linking to compatible terminal platforms running Apple iOS, Android, or Windows. The USB cable also serves for charging. Connection details are specified in the catalogue record.

What imaging parameters can be adjusted?

Adjustable parameters include BGain, TGC, DYN, Focus, Depth, Harmonic, Denoise, Color Gain, Steer, and PRF. Display modes cover B, B/M, B+Color, B+PDI, and B+PW. Scan depth options vary by probe type, from 90/160/200/240mm for convex and 20/40/60/80mm for linear.

What is included as standard and what options are available?

Standard configuration includes one probe-type scanner unit and one USB connect and charging cable. Optional sourced items include carrying bag or aluminium suitcase, stainless steel puncture guide, Android or iOS phone/tablet, Windows PC, tablet bracket, and trolley. Options are confirmed per order.

How are ordering and commercial terms handled?

Ordering is on an enquiry basis. Pricing, availability, and delivery schedules are not fixed in this catalogue record; they are confirmed per individual order. Contact the supplier via ultrasoundprobe.com to specify configuration and receive terms.
