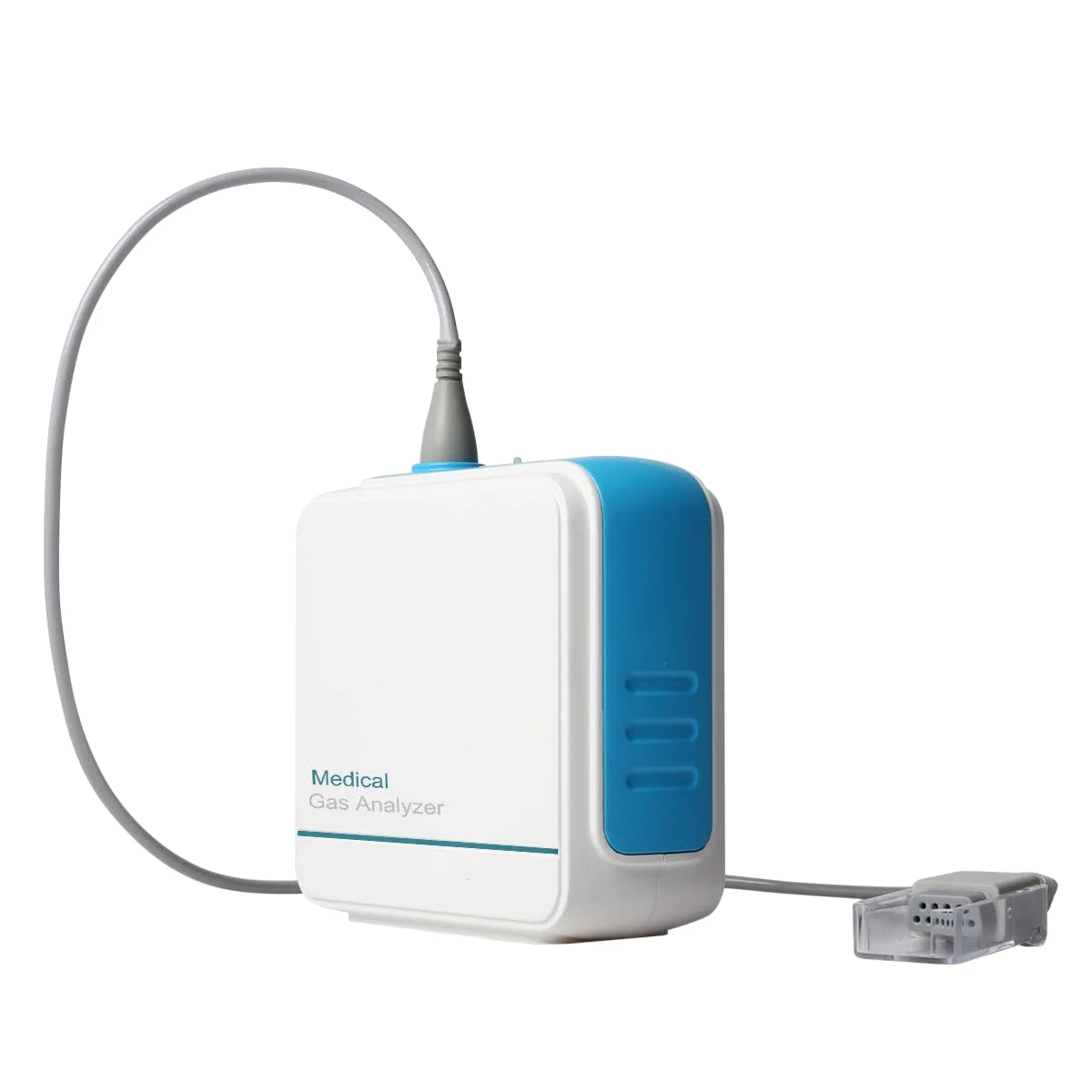

Akicare AG120 Sidestream Medical Gas Analyzer
Sidestream medical gas analyzer measuring CO2, N2O, anaesthetic agents, respiratory rate, with optional O2 sensor.
- Exact system and model compatibility is confirmed in the written quote
- Condition and current availability stated in the quote
- Test scope, timing and shipping confirmed per request
Catalogue content is a product reference, not a universal compatibility, inventory or delivery guarantee.
Product details
The Akicare AG120 is a sidestream medical gas analyzer designed for integration into patient monitoring systems. It is typically specified by hospital wards, clinics, and procurement teams for use in anaesthesia and respiratory monitoring applications. The unit outputs continuous gas concentration and respiratory rate data to the host system.
The analyzer measures CO2, N2O, and anaesthetic agents (ISO, ENF, HAL, DES, SEV), with optional paramagnetic O2 sensing. It uses non-dispersive infrared technology with no moving parts and offers a low sampling rate of 100 ml/min. The device compensates automatically for atmospheric pressure and temperature, and warms up to full accuracy within 2 minutes. Power consumption is less than 2 W.
Configuration options include an optional built-in O2 sensor. The AG120 is one of several models; related catalogue entries cover the AG200, MG1000, and MG2000. Sourcing and delivery terms are confirmed on an enquiry basis, as are any accessory or integration requirements.
More Anaesthesia Gas Analysers models are listed in the Medical Equipment catalogue for comparison; send an enquiry for configuration and terms.
| Sample Rate | 100 ml/min |
|---|---|
| Principle of Operation | Non-dispersive infrared (NDIR), no moving parts |
| Initialization Time | 20 sec, full specifications within 60 sec |
| Calibration | No routine user calibration required |
| Compensation | Automatic for atmospheric pressure, temperature |
| Respiratory Rate Range | 3 to 150 Breaths Per Minute (BPM) |
| Respiratory Rate Accuracy | ±1 breath |
| CO2 Range | 0-15% |
| CO2 Accuracy | ± (0.2 vol% +2% of reading) |
| N2O Range | 0-100% |
| N2O Accuracy | ± (2 vol% +2% of reading) |
| O2 (Optional) Range | 0-100% |
Frequently asked questions
What gases and parameters does the AG120 measure?
The AG120 measures CO2, N2O, and anaesthetic agents (ISO, ENF, HAL, DES, SEV) using NDIR technology. It also reports respiratory rate, inspiration time, and expiration time. An optional paramagnetic O2 sensor can be added for oxygen measurement.
Does the AG120 require calibration or special maintenance?
No routine user calibration is required. The device automatically compensates for atmospheric pressure and temperature. It has no moving parts, which reduces mechanical wear. Warm-up to full accuracy occurs within 2 minutes.
What is the sampling rate?
The sampling rate is 100 ml/min. Confirm host system compatibility and configuration with the supplier before ordering.
How can I order the AG120 or get details on options?
All commercial terms, including pricing, lead time, and configuration options such as the built-in O2 sensor, are confirmed per enquiry. Contact the supplier with your requirements to receive a quotation and specification confirmation.
Before ordering
Confirm the host system
Provide the system model and software or connector details when relevant.
Request current photos
Ask for model-specific photos and the stated condition of the offered item.
Review the quote scope
Check condition, compatibility, testing, timing and shipping before approval.
