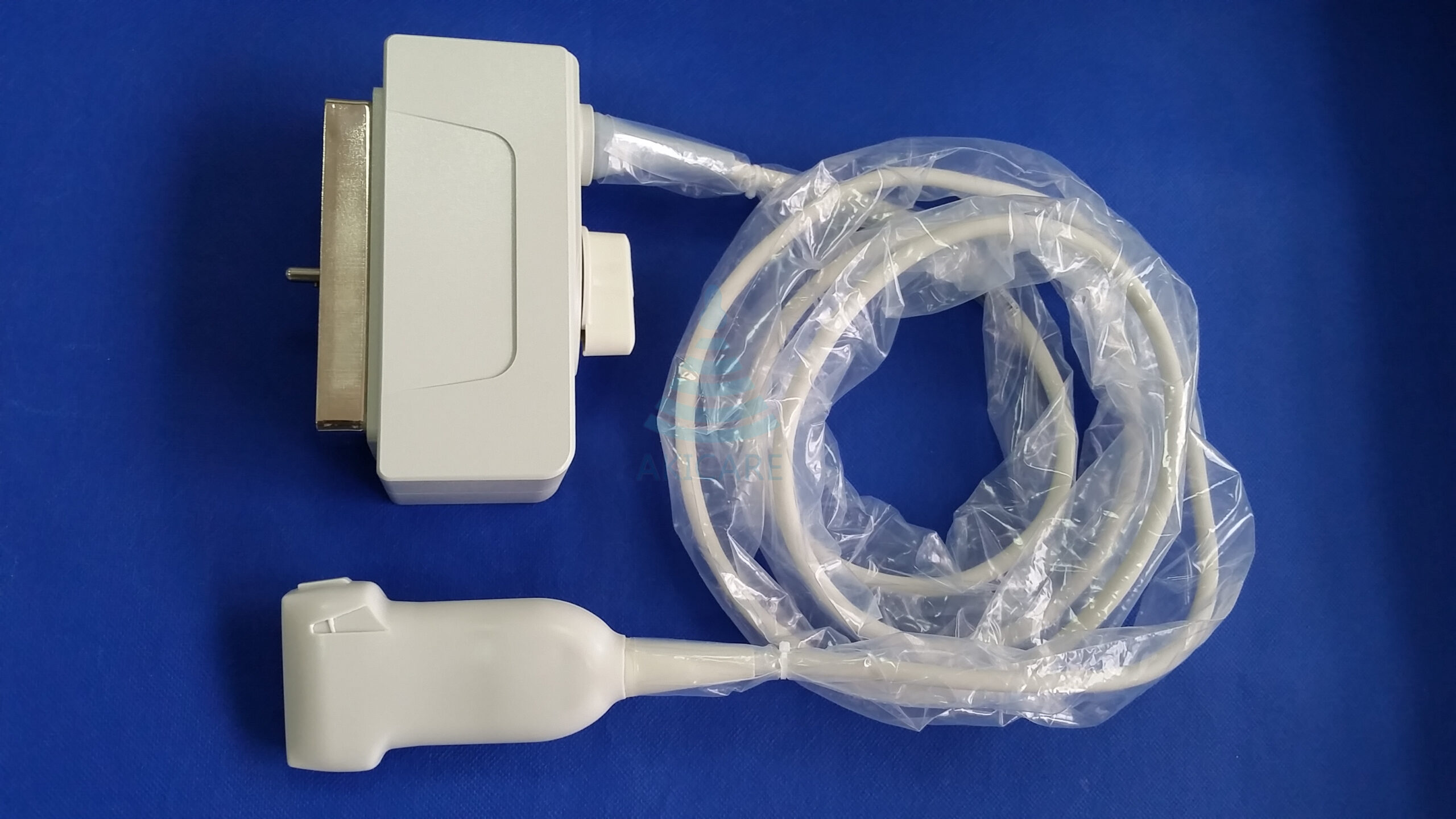

The Hitachi Aloka UST-5412 is a linear ultrasound transducer used on Aloka ProSound and SSD-series systems for vascular, small-parts, and musculoskeletal imaging. Akicare supplies new aftermarket-compatible UST-5412 probes at 40–70% below OEM pricing and repairs original units for 30–60% of replacement cost, with every probe verified element by element before dispatch.
UST-5412 Overview and Compatible Systems
As a linear array, the UST-5412 produces a rectangular field of view with high near-field resolution — the geometry you want for superficial structures: carotid and peripheral vascular studies, thyroid, breast, tendons, and nerves. It remains in service in large numbers because the Aloka consoles it pairs with are still widely used in clinics and veterinary practices.
The compatible UST-5412 we supply works with the following Hitachi Aloka systems:
| Attribute | Detail |
|---|---|
| Probe model | UST-5412 |
| Array type | Linear |
| Typical applications | Vascular, small parts, musculoskeletal |
| Compatible systems | ProSound Alpha 5, ProSound Alpha 7, ProSound Alpha 10, SSD-500V, SSD-5500 |
| Condition | New aftermarket-compatible, or repair of your original |
If your console is not on this list, ask before ordering — Aloka probe support varies by system software, and we confirm compatibility against your exact console model. Full details are on the UST-5412 product page, and you can see the rest of our Hitachi Aloka-compatible range. If you use the probe for guided procedures, the matching HSM-052 biopsy guide is also available.
OEM vs Compatible vs Repair: Which Makes Sense?
| Option | Typical Cost | Lead Time | Consider When |
|---|---|---|---|
| OEM replacement | Full list price | Distributor-dependent; older Aloka parts can be slow to source | Procurement policy mandates OEM |
| New compatible UST-5412 | 40–70% below OEM | Ships after pre-dispatch testing | Probe is dead, or you need a spare |
| Repair of your original | 30–60% of replacement | 5–10 business days | Lens, cable, or limited element damage |
One point matters for older platforms like the SSD series: OEM availability shrinks as systems age, and a discontinued probe can strand an otherwise healthy console. A compatible transducer or a repair keeps the system in clinical service without a five-figure OEM invoice — often the difference between keeping a working machine and scrapping it.
Common UST-5412 Faults Worth Repairing
- Cable damage near the strain relief — the most frequent failure on heavily used linear probes
- Lens wear or delamination from years of gel contact and cleaning agents
- Element dropout confined to a section of the array (visible as vertical banding)
- Connector pin or housing damage
Our probe repair service evaluates the unit first and quotes before any work begins. If the array damage is too extensive for an economical repair, we say so and quote a compatible replacement instead.
Element-by-Element Verification
Every UST-5412 we ship — new compatible or repaired — goes through per-element acoustic testing. The report shows the response of each element in the array, so weak or dead elements cannot hide behind a quick phantom scan. For a linear probe used in vascular work, this matters: element dropout degrades exactly the fine detail these studies depend on.
Handling Practices That Keep a UST-5412 Out of the Repair Shop
Most UST-5412 failures we evaluate are preventable. The probe’s weak points are mechanical, and daily habits determine how long the transducer lasts:
- Support the cable on the cart. A cable left hanging over the console edge flexes at the strain relief every time the cart moves, and strain-relief breaks are the most common linear-probe fault we repair.
- Wipe gel off after every study. Dried gel is abrasive and works into the lens surface over time.
- Use only disinfectants approved for the lens material. Aggressive agents soften the acoustic lens and accelerate delamination, which shows up as image shadowing long before the lens visibly peels.
- Store the probe in its holder, never dangling by the cable, and inspect the strain relief and lens edge weekly. Catching a cable jacket crack early turns a probe swap into a minor repair.
Frequently Asked Questions
Will a compatible UST-5412 be recognized by my SSD-500V or ProSound console? Yes, on the supported systems listed above. The console reads the probe identification the same way it reads an original, so it appears in the probe menu without configuration changes. If your console or software version is unusual, send the model and we confirm before you order.
Can I keep using my existing HSM-052 biopsy guide? The guide mounts on the probe housing, so fit depends on the housing geometry. Tell us which guide you use when you request a quote and we verify the pairing before dispatch.
How long does a repair take? Evaluation and quote come first; approved repairs run 5–10 business days plus shipping. If the fault is not economical to repair, you get that finding instead of an invoice.
Request a Quote
Tell us your Aloka console model and whether you need a replacement or a repair evaluation. We respond with confirmed compatibility, pricing, and lead time, and we ship worldwide. Start from the UST-5412 page or contact us directly with a photo of your probe label.
Compatible/aftermarket product. Not manufactured by or affiliated with Hitachi Aloka; brand and model names are used for compatibility reference only.
