You should buy a new Philips C9-4v when the transducer array itself has failed — widespread dead elements, deep fluid invasion, or a crushed head — because at that point repair no longer makes economic sense. For mechanical damage such as a torn sheath, lens wear, or cable faults, repair at 30–60% of replacement cost is usually the better decision. This article sets out the failure signs, the compatibility facts, and the cost math so you can make that call with your own probe in hand.
C9-4v Specifications and Compatible Consoles

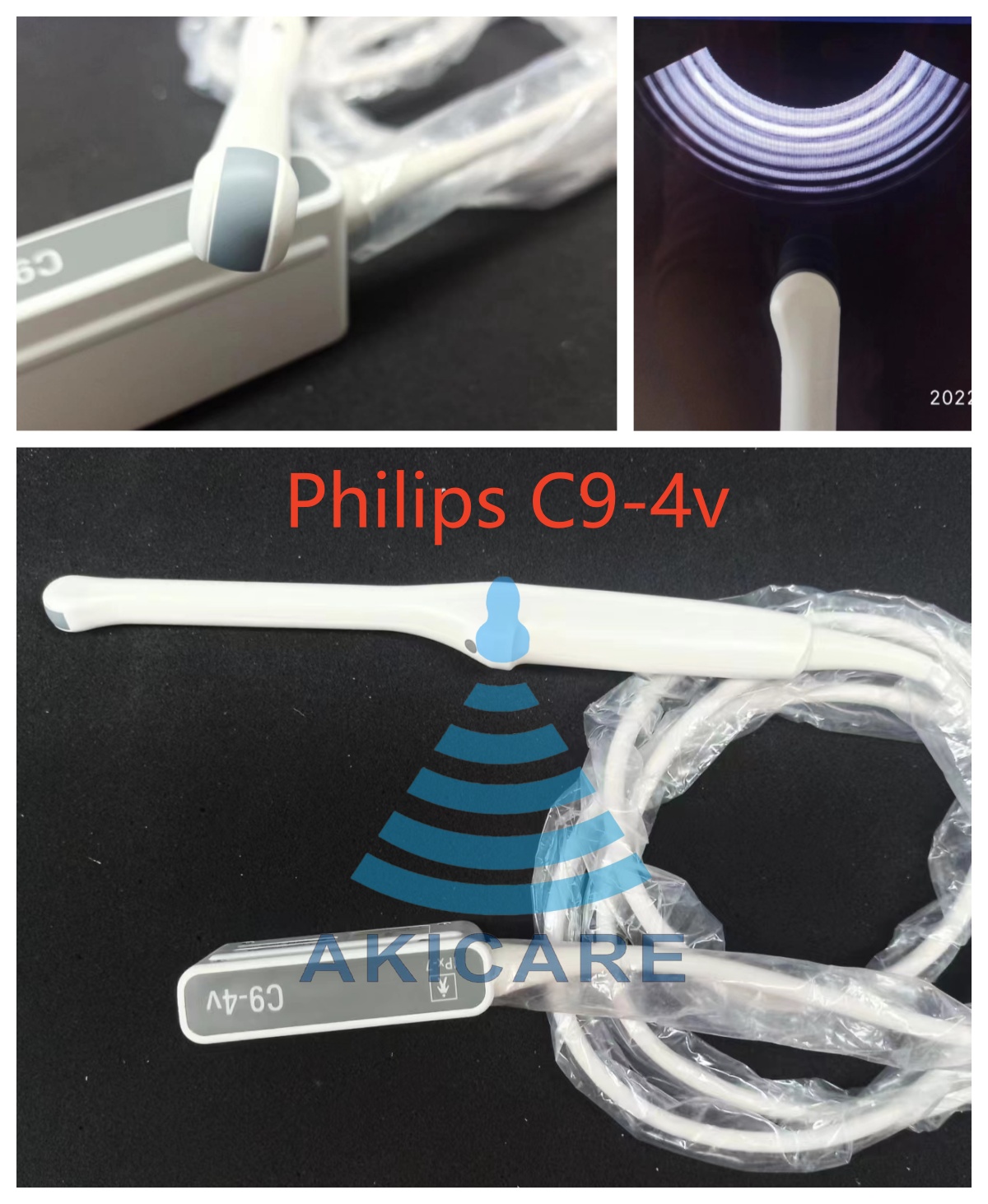

The Philips C9-4v is an endocavity curved-array transducer operating in the 4–9 MHz range, used for transvaginal OB/GYN imaging: early pregnancy, endometrial and ovarian assessment, and follicle monitoring. Its microconvex tip and higher frequencies give the near-field resolution that endocavity work demands.
The C9-4v is designed for the Philips ClearVue platform — ClearVue 350, 550, and 650 consoles are the common hosts. It is not interchangeable with the C9-4 or C10-3v used on other Philips families, and it will not connect to HD or EPIQ systems. If you run a mixed Philips fleet, check the part number on the connector before ordering; a probe that physically resembles the C9-4v but carries a different model code will be rejected by the console or, worse, load incorrect presets. Our C9-4v product page lists the exact console compatibility for the units we test and stock.
Signs Your C9-4v Needs Attention — and Which Ones Mean Replacement
Endocavity probes fail earlier than surface probes because of constant high-level disinfection and handling stress on the insertion tube. Watch for these symptoms:
| Symptom | Likely cause | Usual remedy |
|---|---|---|
| Vertical dropout lines in image | Dead elements | Repair if few; replace if widespread |
| Image flicker when cable moves | Broken cable conductors | Repair (cable replacement) |
| Cuts or bubbling on lens | Lens delamination from disinfectant exposure | Repair (lens recast) |
| Torn insertion-tube sheath | Handling damage | Repair — urgent, this is an infection-control failure |
| Console no longer recognizes probe | Connector or board fault | Repair evaluation |
| Whole-image noise, heavy sensitivity loss | Fluid invasion into the array | Usually replacement |
The dividing line is the acoustic array. Sheaths, lenses, cables, and connectors are all replaceable at a fraction of probe cost, with a typical turnaround of 5–10 working days. Once a large share of the array is dead or flooded, the repair quote approaches the price of a tested replacement, and replacement wins. Our probe repair service evaluates the probe first and quotes before any work, so you see which side of that line you are on.
Replacement Options and What They Cost
New OEM from Philips is the reference point on quality and the highest price. For a ClearVue console several years into service, an OEM probe purchase can amount to a significant share of the console’s remaining value, which is why many facilities look at alternatives.
A tested compatible or refurbished C9-4v typically saves 40–70% against the OEM price. The decisive question is verification: require a per-element test report, in which every element of the array is individually driven and measured, before the probe ships. This report turns “refurbished” from a marketing word into a set of numbers you can compare against acceptance criteria. Pair it with a written warranty of several months covering the array.
Repair of your existing probe, where feasible, runs 30–60% of replacement cost and keeps a known-good array in service. For a busy OB/GYN department, the practical pattern is to hold one spare endocavity probe so that repairs never take a room offline.
The Decision in Brief
Buy new (OEM or tested compatible) when the array is gone, when the probe has been lost or crushed, or when you need a second probe to cover repair rotations. Repair when the damage is mechanical and the array still tests well — that is the majority of real-world C9-4v failures. Before spending at OEM level, get a repair evaluation and a compatible-probe quote side by side; the two documents together usually make the decision obvious. Browse our tested Philips probe inventory or send us your probe’s symptoms and console model for a same-day assessment.
