Akicare PM12D Multi-Parameter Patient Monitor

The Akicare PM12D is a multi-parameter patient monitor intended for use in hospital wards, clinics, and similar care settings. Procurement teams and clinical staff typically enquire about this unit for bedside monitoring roles where continuous observation of vital signs is required. The device is designed for stationary use with the option of battery power for short-duration transport or interruption coverage. This catalogue record describes the standard configuration as sourced from the supplier.

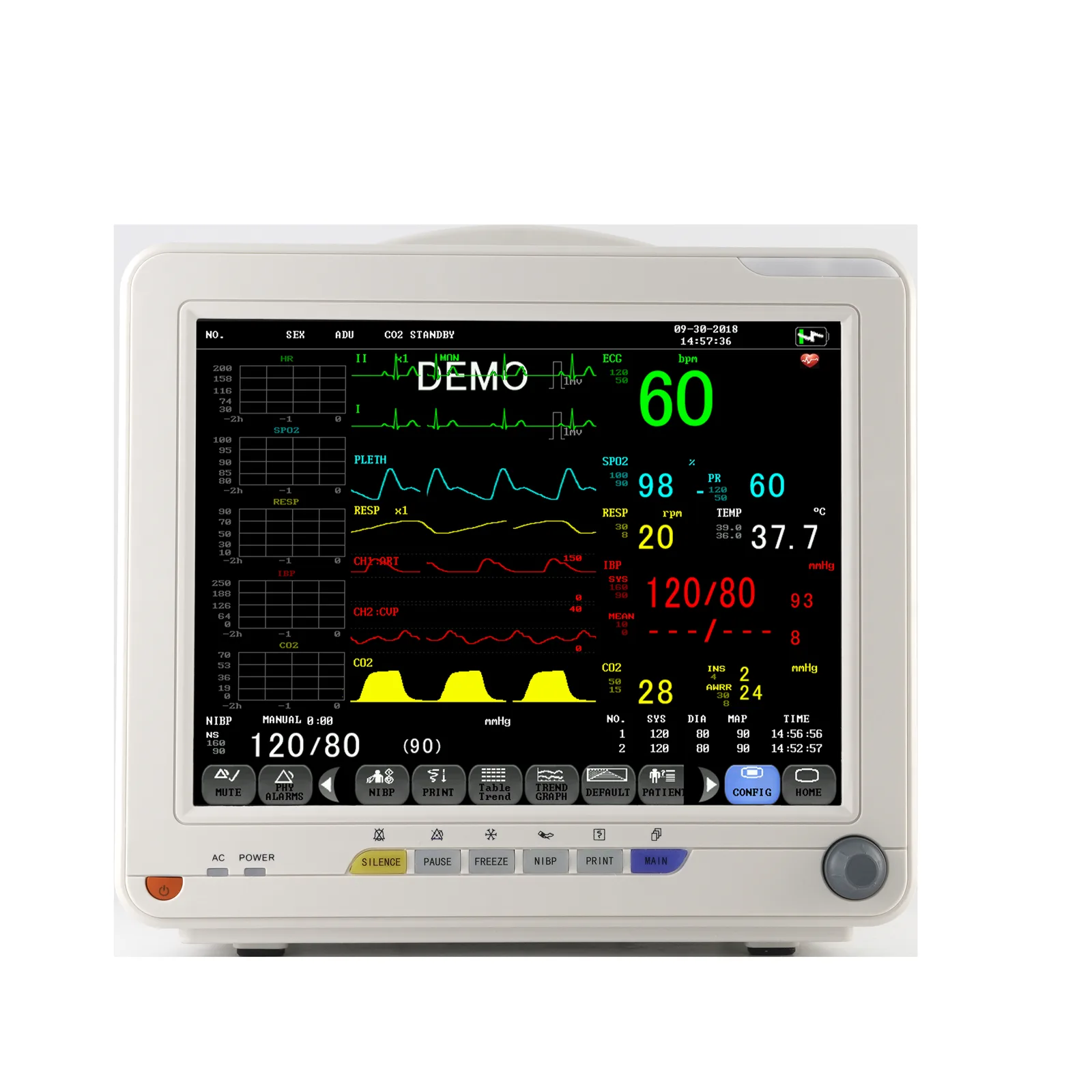

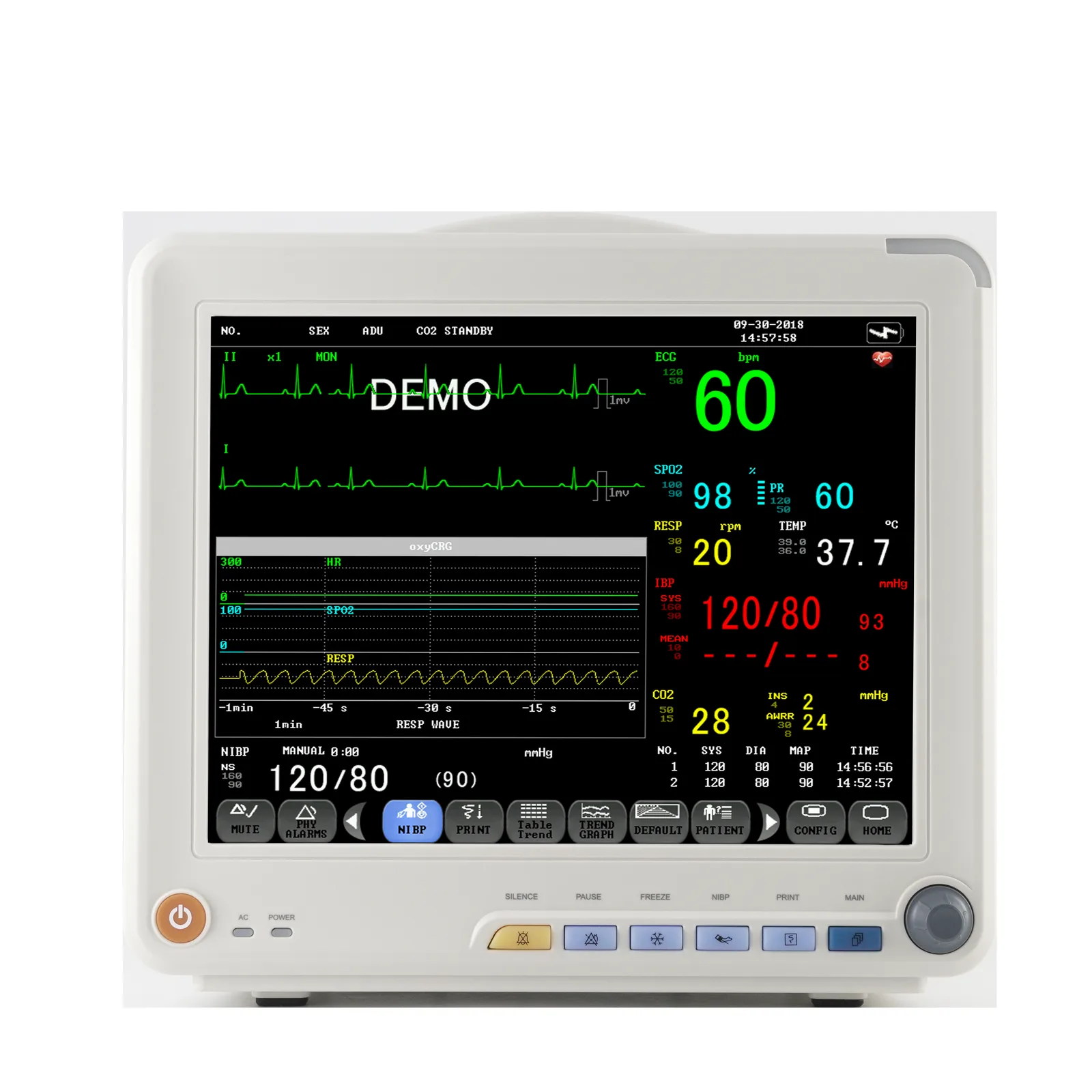

The PM12D measures ECG, SpO2, and NIBP. The 12.1 inch colour display offers 800*600 resolution and supports multiple working modes: Monitoring, Surgery, and Diagnosis. Display options include Standard Interface, Large font, ECG Standard Full Display, OXY, Trend Table, and BP Trend. A built-in rechargeable lithium battery provides up to 3 hours of continuous work, and a VGA output allows connection to an external display.

The unit includes ECG with 5 leads, SpO2 with pulse rate, and NIBP with three measurement modes and adult or paediatric ranges. Configuration options such as additional accessories or compatible models (cPM, XP10, ePM) are available from the supplier. Commercial terms, including pricing and packaging, are confirmed per enquiry. Contact the supplier for current specifications and ordering details for this or related models.

More Patient Monitors models are listed in the Medical Equipment catalogue for comparison; send an enquiry for configuration and terms.

Frequently asked questions

What parameters does the PM12D monitor?

The PM12D measures ECG (including heart rate and ST), SpO2 (oxygen saturation and pulse rate), and NIBP (non-invasive blood pressure) with adult and paediatric modes. The unit displays these parameters across multiple interfaces, including standard, large font, and trend table views.

Does the monitor have battery backup?

Yes, the PM12D includes a built-in rechargeable lithium battery that supports up to 3 hours of continuous work. This is suitable for short interruptions in power supply or brief patient transport scenarios. The VGA output allows connection to an external display.

What ECG lead configurations are available?

The ECG function uses a 5-lead configuration supporting leads I, II, III, AVR, AVL, AVF, and V. Sweep speeds are selectable at 12.5, 25, or 50 mm/s. There are three bandwidth settings corresponding to the working modes: Diagnostic (0.05~130 Hz), Monitor (0.5~40 Hz), and Surgery (1~20 Hz).

How do I place an order or get pricing?

Orders and pricing are handled on an enquiry basis. Confirm current availability, configuration options, and commercial terms directly with the supplier. Accessory options and compatible models, such as cPM, XP10, or ePM, can also be discussed for your specific procurement requirements.
