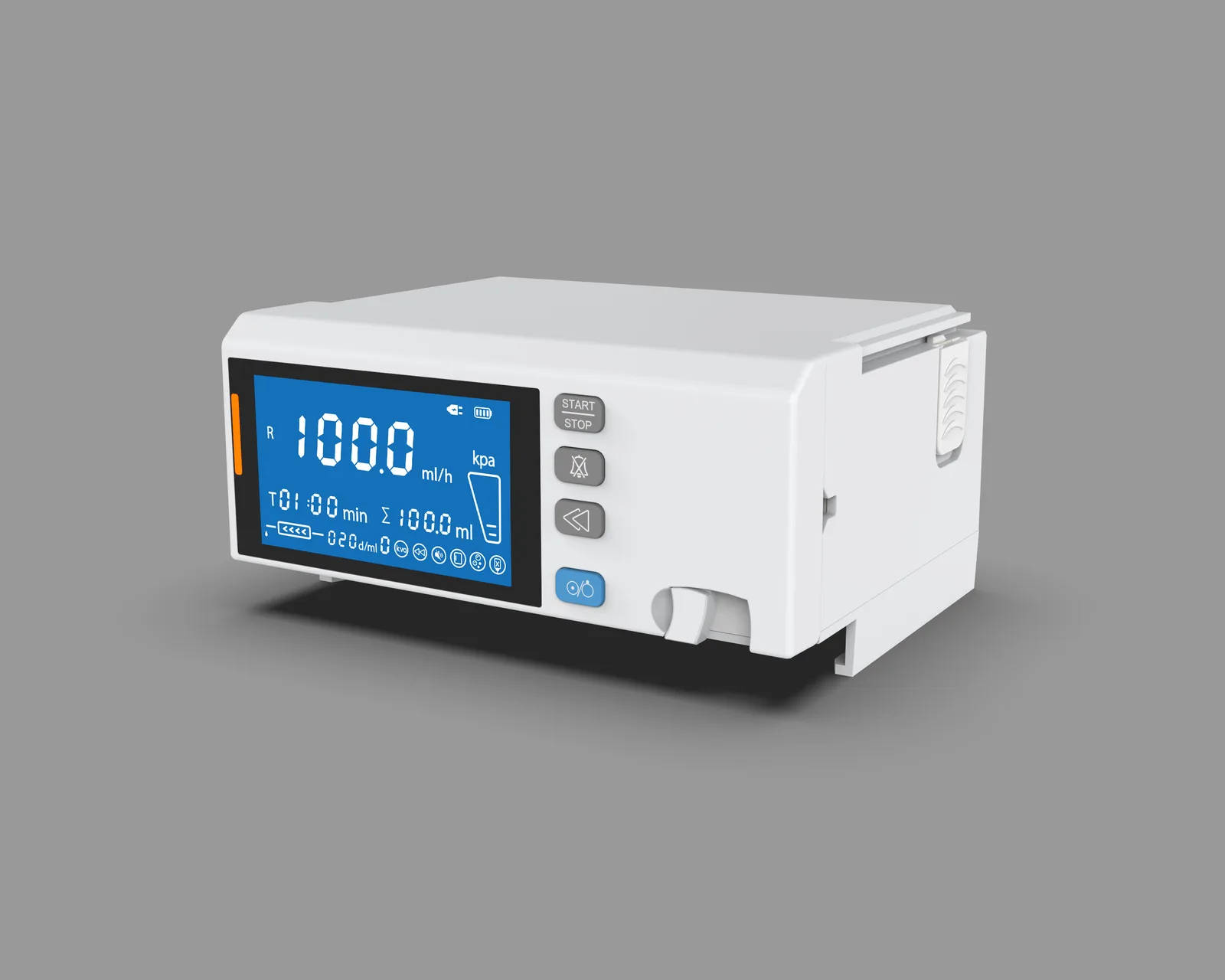

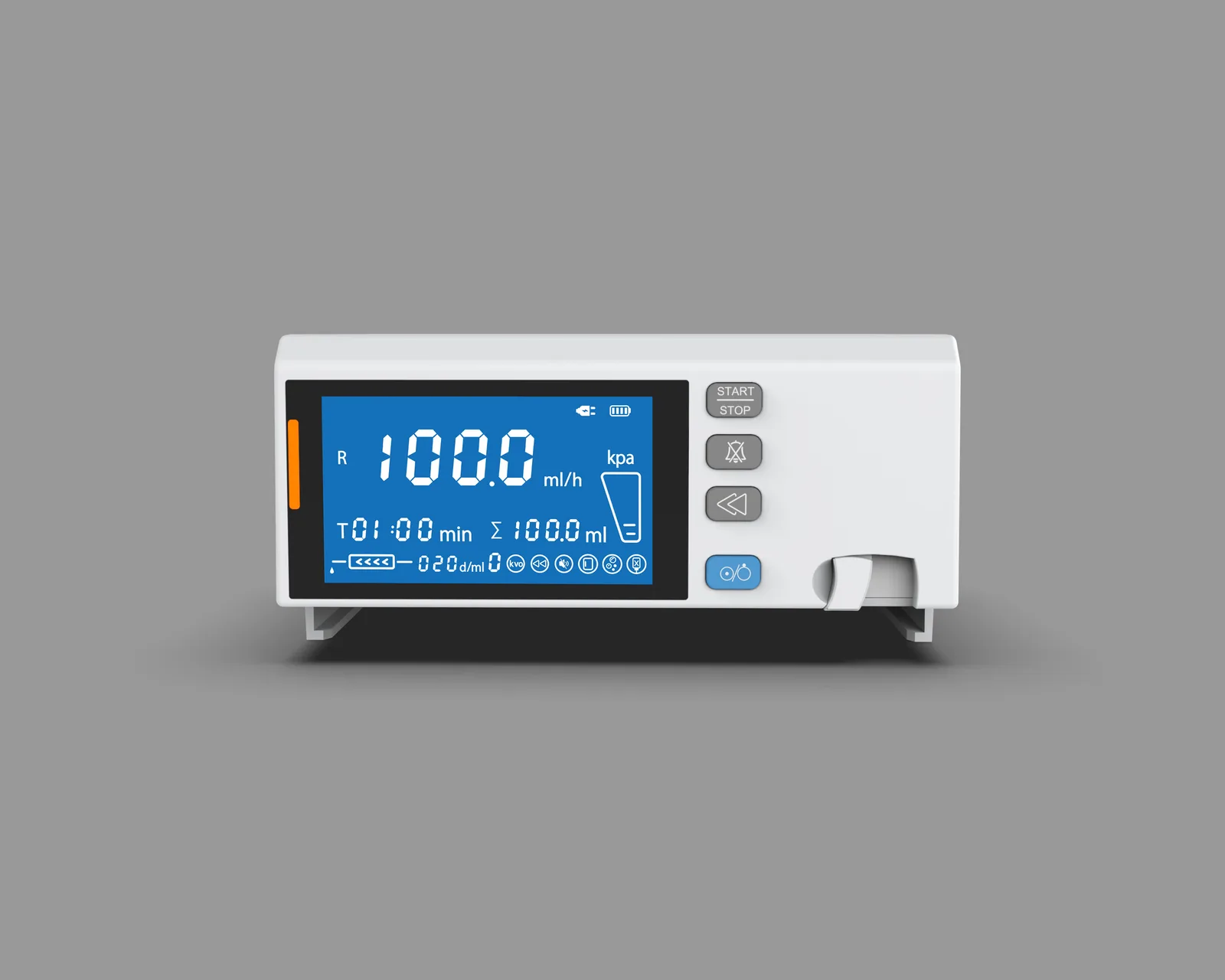

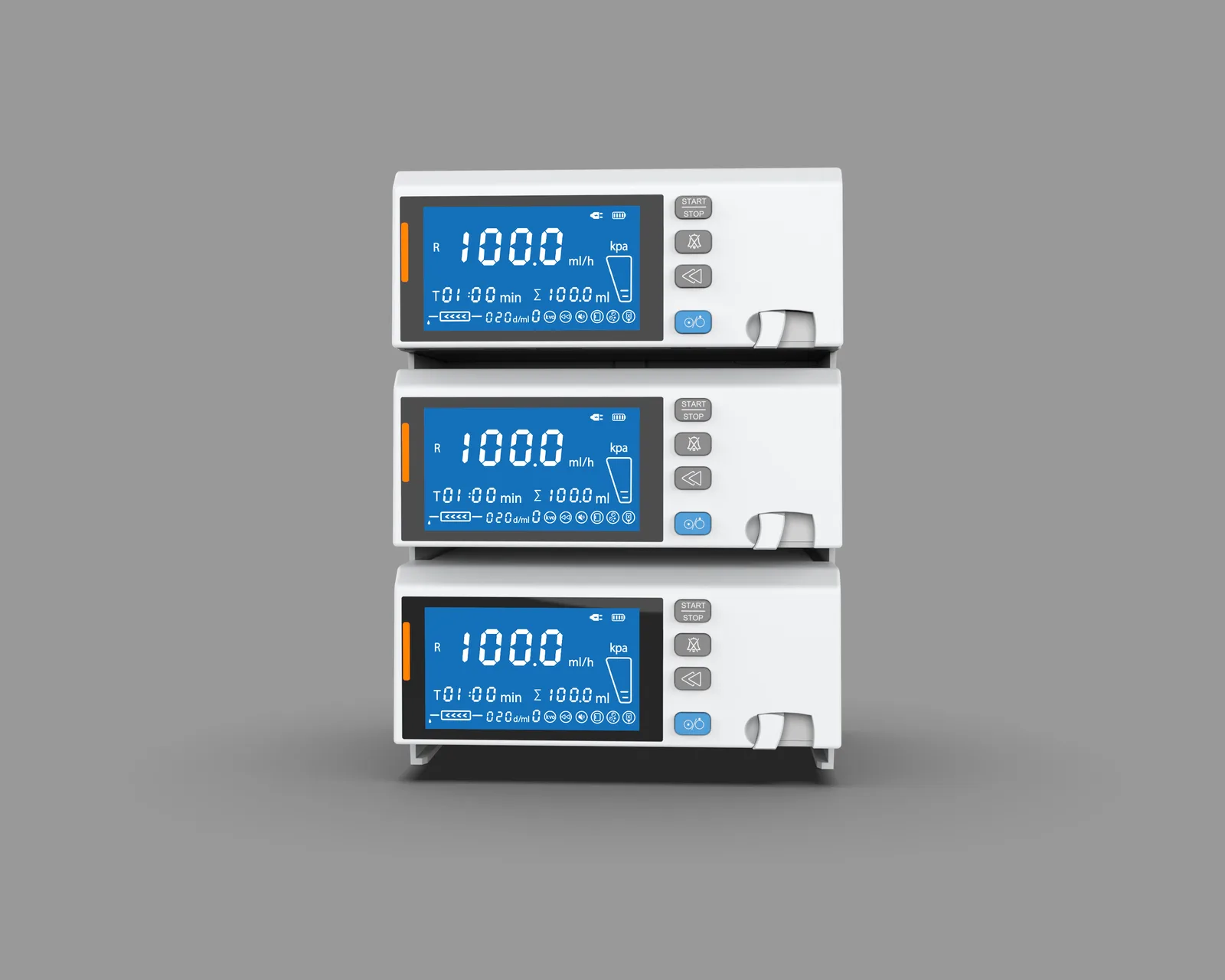

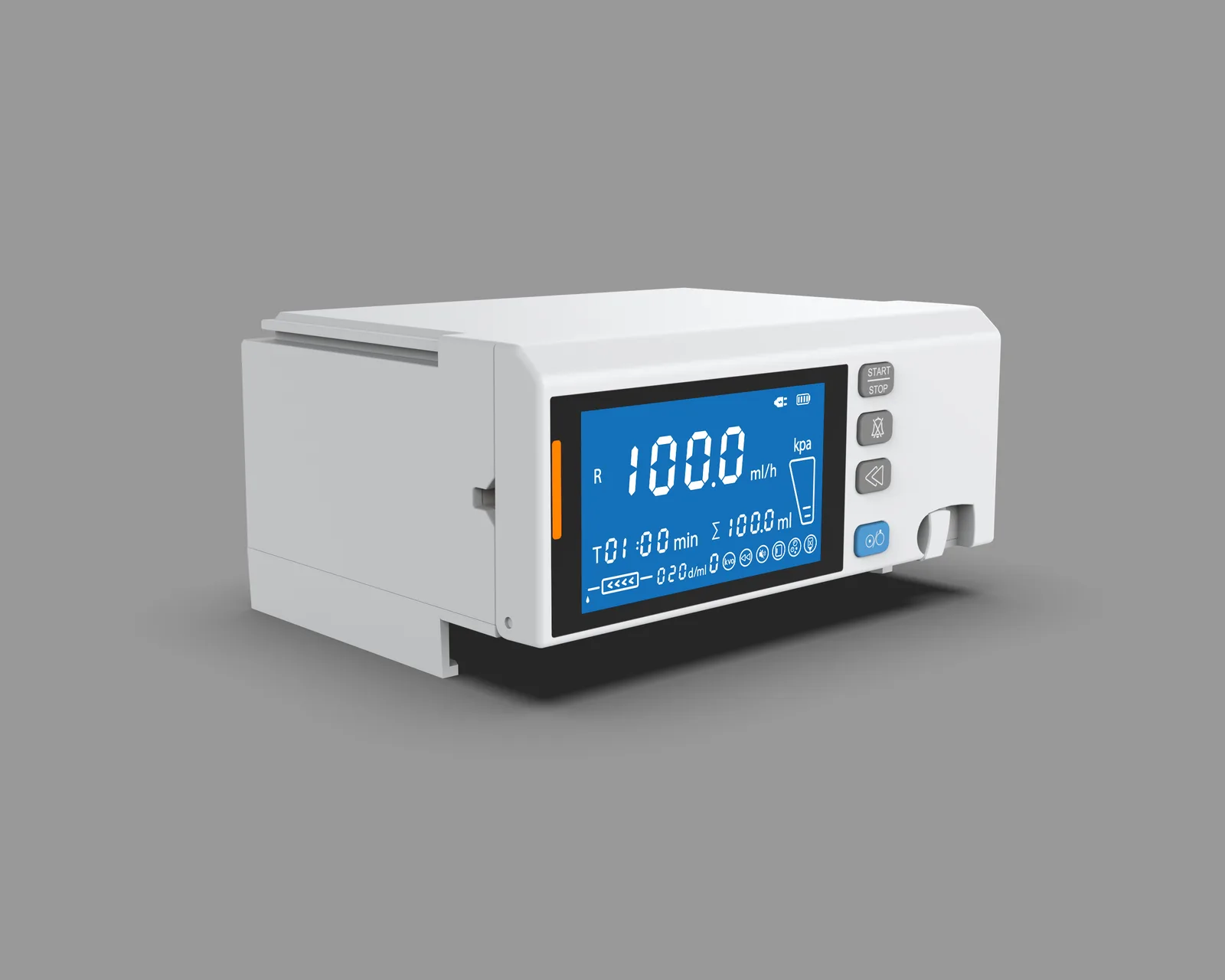

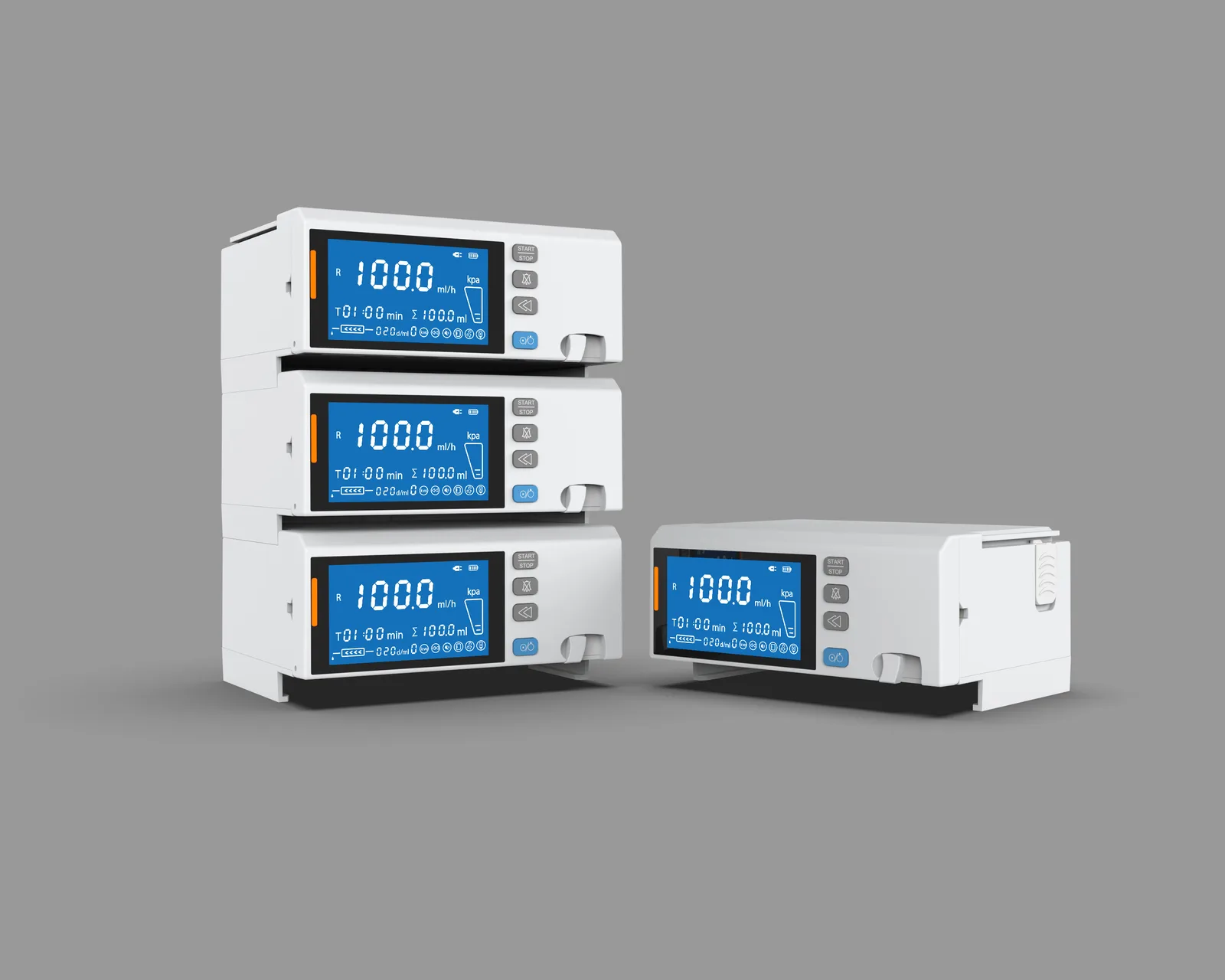

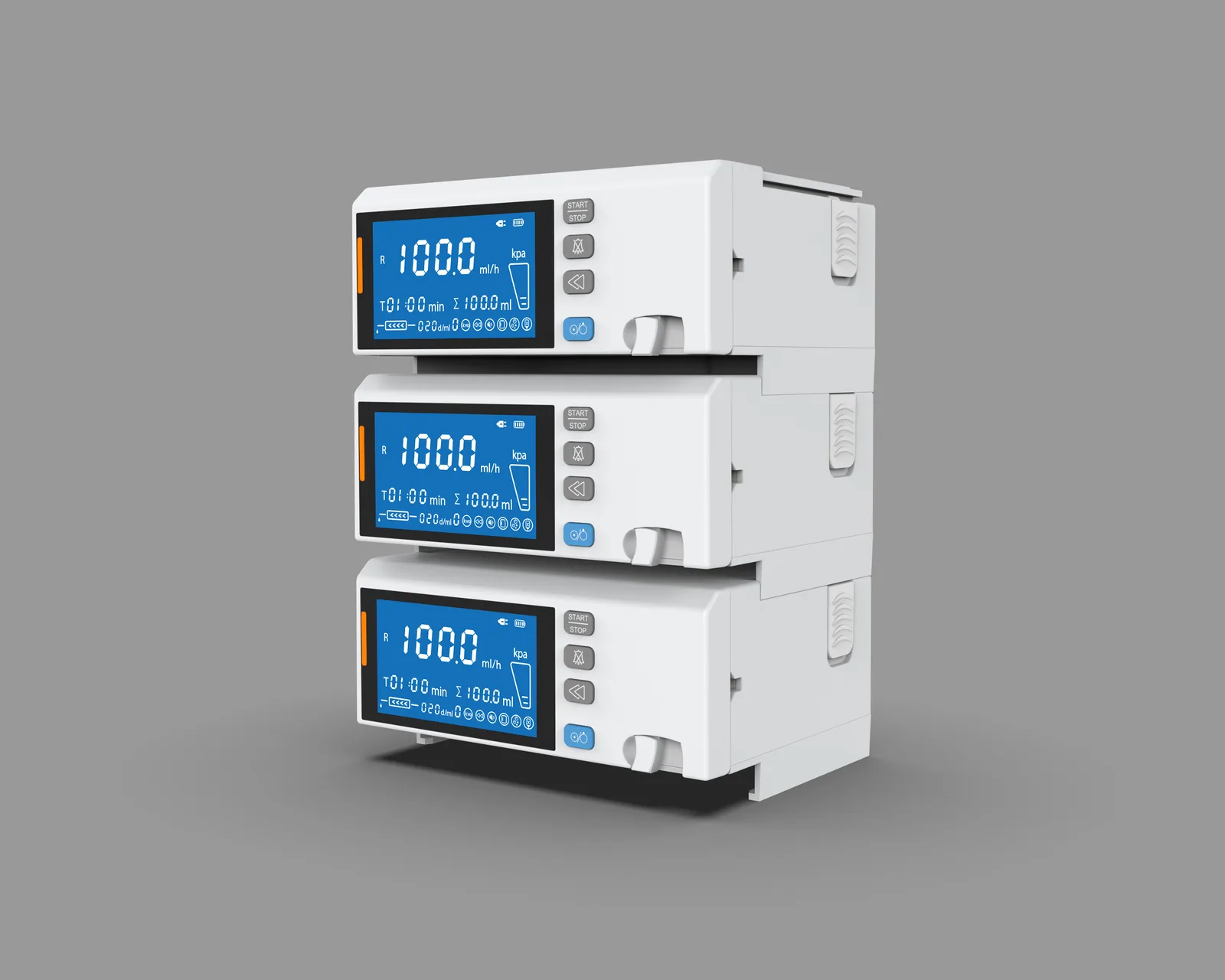

Akicare IP01 Infusion Pump
A compact infusion pump with a 4.3-inch touch screen, battery operation, and multiple infusion modes for general ward use.
- Exact system and model compatibility is confirmed in the written quote
- Condition and current availability stated in the quote
- Test scope, timing and shipping confirmed per request
Catalogue content is a product reference, not a universal compatibility, inventory or delivery guarantee.
Product details
The Akicare IP01 is an infusion pump for hospital wards, clinics, and procurement teams sourcing medical equipment. It is a compact, lightweight unit designed for infusion delivery in care settings. The pump is intended for use with various single-use infusion sets and supports multiple infusion modes, suiting different procedural requirements. It is commonly specified for general infusion duties where volumetric accuracy and monitoring are required.
The IP01 has a 4.3 inch colour touch screen and a built-in lithium battery providing around 5 hours of working time at an infusion rate of 100ml/h. The unit measures flow rate from 0.1 to 1500ml/h, with volume to be infused (VTBI) set from 0.1 to 9999ml. It includes air-bubble detection (minimum 50ul), occlusion pressure settings from 19 to 133kPa, and audible and visual alarms. Power is via AC 100-240V, 50/60Hz, or external DC 7.4V.
The IP01 is available as a standalone infusion pump in the catalogue. Related models in the same category include sSP, sIP, sDS, and sMS, as well as the NP100 and SP02, which may be considered depending on application. Configuration options and commercial terms, including pricing and availability, are confirmed per enquiry. For detailed specifications or to request a quote, procurement teams should contact the supplier directly with their requirements.
| Model | IP01 |
|---|---|
| Applicable infusion set | Various brand of infusion set, single use 20drops/ml; Infusion set diameter: 3.4~4.5mm |
| Infusion modes | ml/h (default): Flow rate & volume mode, Flow rate & time mode, Flow rate mode; d/min: Drip & volume mode, Drip & time mode, Drip mode |
| Flow rate range | 0.1-1500ml/h (0.1-100ml/h, increment 0.1ml/h; 101-1500ml/h, increment 1ml/h) |
| Infusion dripping speed | 20d/ml, infusion set: 1-500d/min |
| Infusion accuracy | ±5% |
| Volume to be infused (VTBI) | 0.1-9999ml (0.1-999.9ml, increment 0.1ml; 1000-9999ml, increment 1ml) |
| Purge rate | 1000ml/h |
| KVO rate | 2.5ml/h |
| Occlusion Pressure | 19kPa, 38kPa, 57kPa, 76kPa, 95kPa, 114kPa, 133kPa (default: 95kPa) |
| Air-bubble detection | Smallest size of Air Bubble: 50ul |
| Power supply | AC power supply: 100-240V, 50/60Hz; External DC power supply: 7.4V |
Frequently asked questions
What is the flow rate range of the IP01 infusion pump?
The IP01 covers a flow rate range from 0.1 to 1500ml/h. For rates between 0.1 and 100ml/h, the increment is 0.1ml/h. For rates from 101 to 1500ml/h, the increment is 1ml/h. Drip speed is 1-500d/min for a 20 drops/ml infusion set.
What are the battery and power options?
The pump has an internal rechargeable lithium battery rated at 1800mAh. Battery working time is around 5 hours at an infusion rate of 100ml/h with a new battery. It also operates on AC power supply at 100-240V, 50/60Hz, or an external DC power supply of 7.4V.
How is the pumping accuracy and occlusion pressure configured?
Infusion accuracy is ±5%. Occlusion pressure can be set to 19, 38, 57, 76, 95, 114, or 133kPa, with a default setting of 95kPa. Air-bubble detection triggers on bubbles with a minimum size of 50ul.
How do I order the IP01 or get more details?
The IP01 is listed in our catalogue. For ordering, pricing, or configuration details, please submit an enquiry through the site. Terms, including delivery schedules and bulk options, are confirmed on a per-order basis. Related models such as sSP, sIP, sDS, sMS, NP100, and SP02 are also available.
Before ordering
Confirm the host system
Provide the system model and software or connector details when relevant.
Request current photos
Ask for model-specific photos and the stated condition of the offered item.
Review the quote scope
Check condition, compatibility, testing, timing and shipping before approval.
